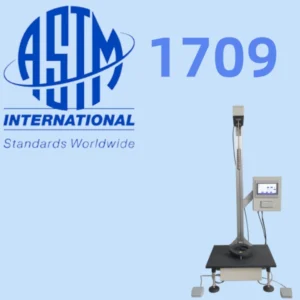

Dart Impact Test Guide for Plastics with ASTM D1709 Methods
Dart Impact Test for Plastic Films and Packaging Materials
Plastic film manufacturers, converters, and quality inspection laboratories use the dart impact test to evaluate how well packaging materials resist impact from a falling projectile. As flexible packaging continues to evolve, understanding this test is essential for ensuring film durability, preventing transit damage, and meeting global regulatory expectations.
Understanding the Dart Impact Test and Its Importance
The dart impact test measures the energy required to cause failure in a plastic film when a hemispherical dart strikes it from a fixed height. This evaluation method helps predict real-world performance, including drop failures in transportation, packaging integrity during handling, and the overall toughness of thin-film materials.
ASTM D1709 and ISO 7765 define the standard procedures, specifying dart sizes, drop heights, conditioning requirements, and calculation methods to determine the 50% failure energy (also known as impact failure weight). Because this test reflects the combined contribution of film formulation, extrusion quality, and thickness uniformity, it is widely used in film production, food packaging, pharmaceutical blister materials, and numerous flexible packaging applications.
Manufacturers often rely on this test to create specifications, qualify new materials, and conduct routine quality control. When paired with a high-precision instrument like the Cell Instruments Falling Dart Impact Tester, it becomes an indispensable tool for minimizing material failure risks and ensuring consistent mechanical performance.
How the Dart Impact Test Works
The dart impact test uses a free-falling hemispherical dart that drops vertically onto a clamped film specimen. The film either fails or withstands the impact. By regulating dart weight increments and counting failures, operators determine the weight that produces a 50% failure rate, which represents the material’s impact resistance.
Test Method A and Test Method B
ASTM D1709 includes two test methods:
- Method A uses a 38.10 mm dart head, dropped from 0.66 m, ideal for films requiring weights from 50 g to 6 kg.
- Method B uses a 50.80 mm dart head, dropped from 1.52 m, suitable for films requiring 0.3 kg to 6 kg.
These two methods produce results that cannot be compared directly because dart size, drop height, and impact energy differ.
The Staircase Method
The staircase method adjusts dart weight after each test based on the previous specimen’s outcome. This method is widely used because it provides reliable statistical significance with fewer samples.
Alternative Grouping Method
Here, groups of ten specimens are tested at a single weight, and the weight is changed between groups. This method becomes useful when a wide failure distribution is needed for detailed analysis.
Role of Drop Impact Tester in Accurate Film Evaluation
A reliable drop impact tester is essential for performing the dart impact test according to ASTM D1709 and ISO 7765. Precision in drop height, dart geometry, clamping pressure, and specimen alignment directly affects test accuracy.
Why a High-Performance Drop Impact Tester Matters
- Ensures repeatable impact location
- Prevents slippage through stable clamping
- Maintains precise drop height tolerances
- Allows accurate increments of dart weight
- Reduces operator variability
For laboratories or manufacturers aiming for dependable quality control, using a professional-grade impact tester is crucial. The Cell Instruments Falling Dart Impact Tester provides automated height control, precision clamping, and reliable dart release systems, enabling users to achieve stable and repeatable results while fully complying with ASTM and ISO requirements. It is especially valuable for production plants that need consistent reporting and traceable testing data.
Factors Influencing Dart Impact Test Results
Several material and testing variables affect dart impact performance:
- Film Thickness: Impact resistance increases but does not scale linearly.
- Extrusion Uniformity: Gauge variation, die lines, and contaminants greatly influence results.
- Material Type: Polyethylene, nylon, EVOH composites, BOPP, and multilayer films each behave differently.
Konditsioner: Films must be conditioned at 23°C va 50% RH before testing.
Accurate data requires adherence to conditioning procedures, proper dart inspection, and periodic clamping verification to avoid specimen slippage.
Applications of Dart Impact Test in the Packaging and Material Industries
The dart impact test is essential for:
- Food packaging films such as PE, LLDPE, and multilayer pouches
- Pharmaceutical packaging films and medical device pouches
- Agricultural films, liners, and industrial roll stock
- Flexible laminates requiring precise toughness evaluation
- R&D testing for new film formulations
- Incoming material inspection for converters and processors
By understanding impact resistance, manufacturers can design films with improved drop tolerance, reduced material usage, and optimized mechanical balance.
Benefits of Using Cell Instruments Falling Dart Impact Tester
The Cell Instruments Falling Dart Impact Tester supports:
- Automated drop height positioning
- High-strength specimen clamping to prevent slippage
- Precision-machined dart heads with controlled tolerances
- Built-in safety mechanisms for operator protection
Statistical reporting aligned with ASTM D1709 and ISO 7765
Its robust structure and advanced controls make it ideal for laboratories seeking accuracy and repeatability
